Swing Indicators

Here the swing versions of the base indicators are described.

Swing list

Introduction

This derived indicator expresses the concepts of swings. Major maxima and minima are found, disregarding minor fluctuations. It can be used to find divergences, too. Still another usage is to represent the Elliott waves. The indicator implementing the swing concept is:

Zig Zag with variable threshold

Swing highs and lows are found and then connected by segments.

Function Composition

For greater flexibility, the Swing indicator is not applied directly to a base indicator per se, but to its Moving Average (MA):

  Zig Zag (MA (base indicator() ))

This way, the swing can be calculated on a smoothed version of the indicator. As explained earlier, if you want to apply the swing directly to the base indicator, just select:

  MA lookback = 1

Interpretation

The swing indicator has a common interpretation:

higher swing highs/lows
the base indicator is increasing
lower swing highs/lows
the base indicator is decreasing

Signals

The signals implied by the swing indicator depend on the underlying base indicator and, ultimately, on you. For some indicators divergences are meaningful. A bullish divergence happens when the price has lower lows and the indicator has higher lows. A bearish divergence happens when the price has higher highs and the indicator has lower highs.

Input Parameters Order

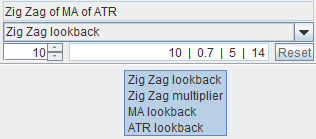

Being a function composition, the input parameters for the Zig Zag come before the MA lookback, which in turn comes before the input parameters of the indicator it is applied to. Example:

  Zig Zag lookback    (10)
  Zig Zag multiplier  (0.7)
  MA lookback         (5)
  ATR lookback        (14)

Output Series

The Swing indicator has the same output range as its input, so they could be plotted together, in the same graph. However, the same considerations made about output series for the smoothed versions of a base indicator, apply here too. We want to avoid cluttering the charts with too many curves. Hence, the general criterion is to plot the base indicator together with its swing version only for indicators, but not for overlays. This is why, for example, there are two output series for

  Zig Zag of MA of ATR

but just one output series for

  Zig Zag of MA of SMA

Zig Zag

Proprietary Zig Zag Indicator

Swing points are found through a Zig Zag indicator. With the Zig Zag indicator you can find in literature, a new swing is set when the price reverses by a percentage greater than the selected one. However this 'standard' Zig Zag is not suitable, because it works with a fixed percentage. For this reason, we developed a proprietary Zig Zag indicator, working with a variable threshold, based on volatility. This way, it adapts automatically to market volatility. Swing points are found according to the volatility of the moment, not based on a fixed percentage valid throughout the historical data.

Volatility Indicator

As volatility indicator the

 Highest high / lowest low

is used. As the name implies, it is defined as the highest high and the lowest low in the lookback period. The difference between the highest high and the lowest low is taken as volatility:

  volatility = highest high - the lowest low

You can find this quantity in the Highest high / lowest low width indicator. In order to trim this number, 'our' Zig Zag multiplies it by a multiplier factor, set by the user. Such a product represents the threshold, i.e. the minimum amount the input must retrace in order to set a new swing point:

  threshold = (highest high - lowest low) ⋅ multiplier

Zig Zag with Variable Threshold

A new swing point is set when the values, input to the Zig Zag, reverse by an amount greater than the threshold from the last swing point.

  input > last low + threshold => last low was a swing low.
                                  Start searching for a high.
  input < last high - threshold => last high was a swing high.
                                   Start searching for a low

You Can't Look Into the Future

This adage could look naive, but graphs can be devious. In the Zig Zag indicator, even in the 'standard' version, highs and lows are first found and then connected by segments. This way of plotting could lead to misunderstanding. Swing Points

Let's make an example with:

  Zig Zag of MA of ATR

Let's suppose we found a swing low ([low] in the picture). Therefore we are now looking for the ensuing swing high and so scan the MA of ATR values onward. When we find that ([T] in the picture):
