Price vs. Overlay

Here the elementary trading algorithms obtained by comparing the price with the value of the overlay are described.


Price vs. Overlay

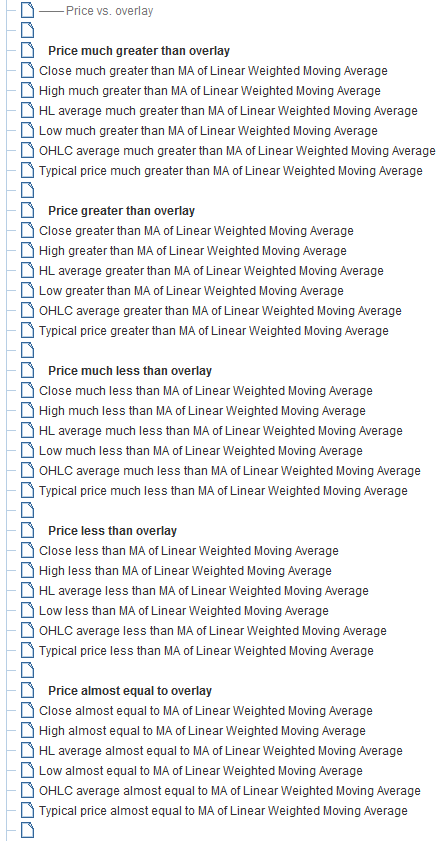

List of Algorithms

In this case, the overlay is the base indicator. The algorithms comparing the price with an overlay are:
  • Price much greater than overlay
  • Price greater than overlay
  • Price much less than overlay
  • Price less than overlay
  • Price almost equal to overlay
More precisely the price is not compared with the overlay itself, but with its moving average, for greater flexibility. For each of these, you can choose what price to use:
  • Close
  • High
  • HL average
  • Low
  • OHLC average
  • Typical price
So we have all possible combinations for each overlay. The combinations are the following.
Price much greater than overlay
  • Close much greater than MA of base indicator
  • High much greater than MA of base indicator
  • HL average much greater than MA of base indicator
  • Low much greater than MA of base indicator
  • OHLC average much greater than MA of base indicator
  • Typical price much greater than MA of base indicator
For instance:
  • Close much greater than MA of Linear Weighted Moving Average
  • High much greater than MA of Linear Weighted Moving Average
  • HL average much greater than MA of Linear Weighted Moving Average
  • Low much greater than MA of Linear Weighted Moving Average
  • OHLC average much greater than MA of Linear Weighted Moving Average
  • Typical price much greater than MA of Linear Weighted Moving Average
Price greater than overlay
  • Close greater than MA of base indicator
  • High greater than MA of base indicator
  • HL average greater than MA of base indicator
  • Low greater than MA of base indicator
  • OHLC average greater than MA of base indicator
  • Typical price greater than MA of base indicator
For instance:
  • Close greater than MA of Linear Weighted Moving Average
  • High greater than MA of Linear Weighted Moving Average
  • HL average greater than MA of Linear Weighted Moving Average
  • Low greater than MA of Linear Weighted Moving Average
  • OHLC average greater than MA of Linear Weighted Moving Average
  • Typical price greater than MA of Linear Weighted Moving Average
Price much less than overlay
  • Close much less than MA of base indicator
  • High much less than MA of base indicator
  • HL average much less than MA of base indicator
  • Low much less than MA of base indicator
  • OHLC average much less than MA of base indicator
  • Typical price much less than MA of base indicator
For instance:
  • Close much less than MA of Linear Weighted Moving Average
  • High much less than MA of Linear Weighted Moving Average
  • HL average much less than MA of Linear Weighted Moving Average
  • Low much less than MA of Linear Weighted Moving Average
  • OHLC average much less than MA of Linear Weighted Moving Average
  • Typical price much less than MA of Linear Weighted Moving Average
Price less than overlay
  • Close less than MA of base indicator
  • High less than MA of base indicator
  • HL average less than MA of base indicator
  • Low less than MA of base indicator
  • OHLC average less than MA of base indicator
  • Typical price less than MA of base indicator
For instance:
  • Close less than MA of Linear Weighted Moving Average
  • High less than MA of Linear Weighted Moving Average
  • HL average less than MA of Linear Weighted Moving Average
  • Low less than MA of Linear Weighted Moving Average
  • OHLC average less than MA of Linear Weighted Moving Average
  • Typical price less than MA of Linear Weighted Moving Average
Price almost equal to overlay
  • Close almost equal to MA of base indicator
  • High almost equal to MA of base indicator
  • HL average almost equal to MA of base indicator
  • Low almost equal to MA of base indicator
  • OHLC average almost equal to MA of base indicator
  • Typical price almost equal to MA of base indicator
For instance:
  • Close almost equal to MA of Linear Weighted Moving Average
  • High almost equal to MA of Linear Weighted Moving Average
  • HL average almost equal to MA of Linear Weighted Moving Average
  • Low almost equal to MA of Linear Weighted Moving Average
  • OHLC average almost equal to MA of Linear Weighted Moving Average
  • Typical price almost equal to MA of Linear Weighted Moving Average

Description

The definitions of non trivial prices are the following.

                high + low
  HL average = ────────────
                    2


                  open + high + low + close
  OHLC Average = ───────────────────────────
                              4

                   high + low + close
  Typical Price = ────────────────────
                           3
Price much greater than overlay
This algorithm checks whether the price is greater than the MA of the overlay plus a threshold, i.e. a particular value, input by the user. So the algorithm is true if and only if
  price > MA (overlay) + threshold
For greater flexibility, the threshold can be negative, too. In that case the algorithm is true even whether the price is slightly below the overlay; the name of the algorithm would then be kind of a misnomer.
Price greater than overlay
This algorithm checks whether the price is greater than the MA of the overlay. So the algorithm is true if and only if
  price > MA (overlay)
Price much less than overlay
This algorithm checks whether the price is less than the MA of the overlay minus a threshold, i.e. a particular value, input by the user. So the algorithm is true if and only if
  price < MA (overlay) - threshold
For greater flexibility, the threshold can be negative, too. In that case the algorithm is true even whether the price is slightly above the overlay; the name of the algorithm would then be kind of a misnomer.
Price less than overlay
This algorithm checks whether the price is less than the MA of the overlay. So the algorithm is true if and only if
  price < MA (overlay)
Price almost equal to overlay
This algorithm checks whether the price is around the MA of the overlay, within two thresholds, i.e. two particular values, input by the user. So the algorithm is true if and only if
  MA (overlay) - minus threshold < price < MA (overlay) + plus threshold
For greater flexibility, thresholds can be negative, too. In that case you can check if the price is within a set range not necessarily around the overlay line.

Examples of Application

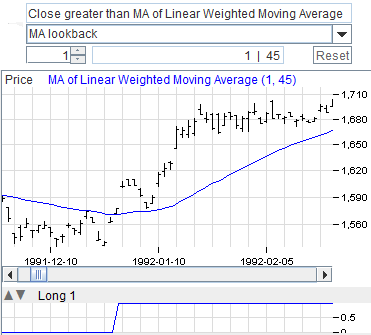

Price Greater Than Overlay: Upside Breakout
Upside Breakout A classic way of trading a price average is to go long when the price breaks over it. We can use the Linear Weighted Moving Average (LWMA) as the moving average, although usually an SMA or EMA is used. Traditionally, the price refers to the close price, so we can use the
  Close greater than MA of
    Linear Weighted Moving Average
algorithm. When the algorithm is true, the close is above the average and you can go long. So put this algorithm in the Long tab.

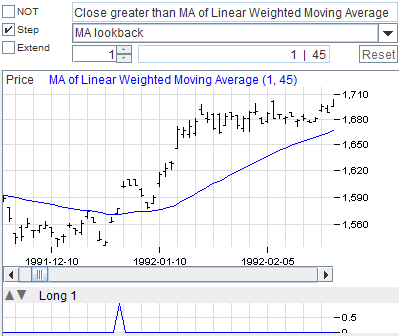

Price Greater Than Overlay: Upside Breakout with Step
Upside Breakout Step If you combine the previous trading algorithm with others, you might find appropriate to enter a long position not whenever the price is above its moving average, but only when there is the breakout, i.e. when the price transitions from below to above its average. For this, you can select the Step checkbox, detecting the transition from false to true of the algorithm. Now the algorithm is true only at the exact instant of the upside breakout

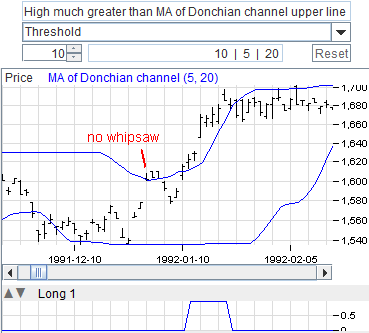

Price Much Greater Than Overlay: Channel Breakout with Margin
Channel Breakout Another classic way to trade overlays, represented as bands or channels, is through the breakout of their lines; very similar to the previous examples. For instance it is suggested to go long when the price breaks over the upper line of the channel. If you want to give this algorithm a try, you can select a channel overlay, like the Donchian Channel, a.k.a. Price Channel. You might want to consider a breakout even with the high price, not necessarily the close. In order to avoid whipsaws, you also might want to have a bit of margin before triggering the signal. So select the
  High much greater than MA of
    Donchian channel upper line
and trim the threshold input parameter with a positive value appropriately, as this is your margin for whipsaws. When the algorithm is true, the high is a little bit above the upper line and you can go long. In the picture, you can see we avoided a false signal causing a whipsaw, just before the actual signal. Put this algorithm in the Long tab.

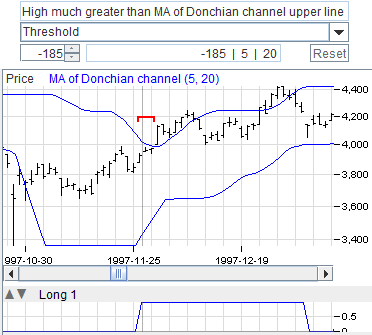

Price Much Greater Than Overlay: Aggressive Channel Breakout
Aggressive Channel Breakout In the previous example, we went on a conservative path, delaying the signal to avoid false signals. If, on the contrary, you want to act more aggressively and try anticipating price moves, you can apply the same algorithm as before, but this time opting for a negative threshold. This way, the algorithm is true whenever the high price is above the upper line minus a margin. In the picture, you can see that we anticipated the signal by three bars.

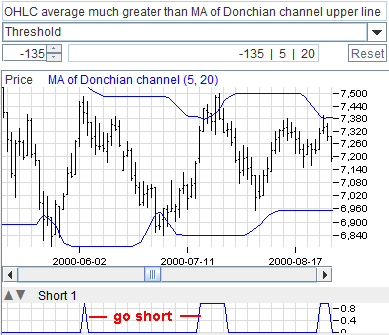

Price Much Greater Than Overlay: Short Signal on Congestion
Channel Breakout If the market is in a congestion phase, the price could oscillate within a channel overlay, its trading range. If this is the case, you can go short when the price approaches the upper line from below, because it is likely to bounce back downward. E.g. you can select the
  OHLC average much greater than
    MA of Donchian channel upper line
with a negative threshold. The threshold indicates how close you want the price to be to the upper line for entering a short trade. Put the algorithm in the Short tab.

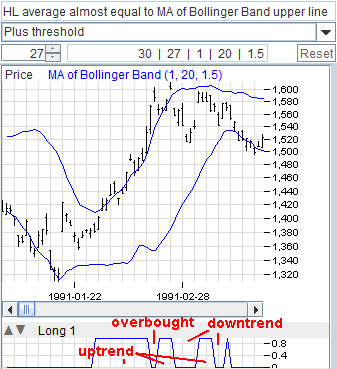

Price Almost Equal to Overlay: Uptrend But Not Overbought
walk the band In an uptrend market, the price could 'walk', as it's said, the upper line of a band. That would be an indication of strength. However, if the price is too higher than the band, that could be a sign of overbought market and foreshadow a decline. By applying an algorithm like
  HL average almost equal to
    MA of Bollinger Band upper line
with appropriate thresholds, you can spot when the price is close to the upper line; not too higher nor too lower. When the algorithm is true, the price is close to the upper line and there is an uptrend. When the algorithm is false, it could be either an overbought, a downtrend or a congestion market. In the picture you can see we correctly spotted an overbought condition that led to a strong correction or downtrend. You can 'AND' this algorithm with others to be sure to go long only in an uptrending market or to liquidate in overbought situations.
